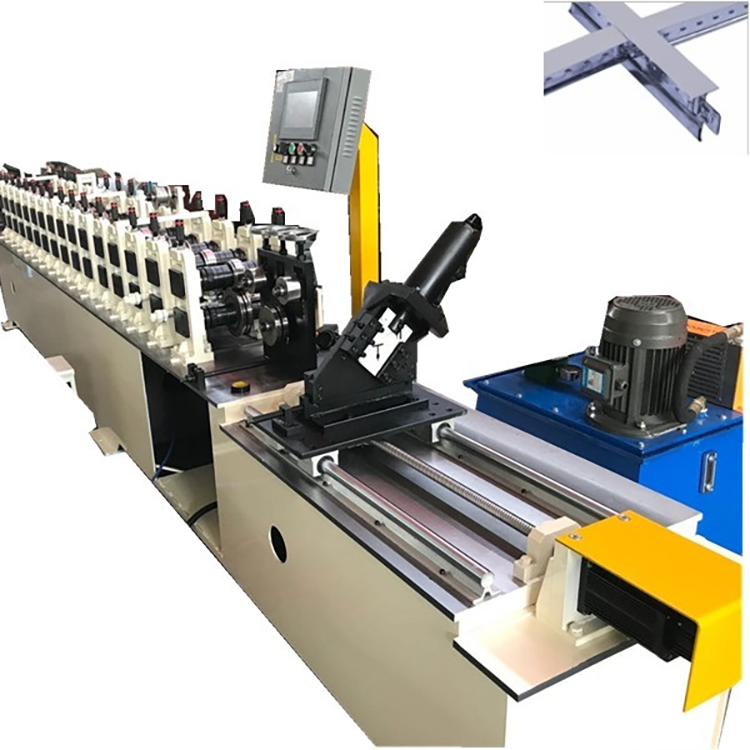

Ceiling T Grid Rolling Forming Machine

Ceiling T Grid Rolling Forming Machine

1.Ceiling T gird system includes main beams, wall molding, and cross tees. It indicates a stab connection on the cross tees. This feature provides a secure connection and fast, accurate alignment confirmed with an audible click. This is the most commonly used and available grid system. By this way, the ceiling T Grid Rolling Forming Machine now is quite popular. On our website, we will introduce main T gird rolling forming machine, cross T gird rolling forming machine, and other related elements one by one.

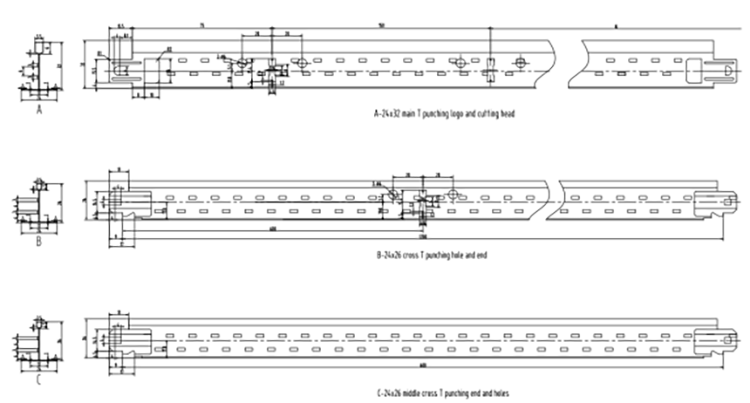

2. Drawing

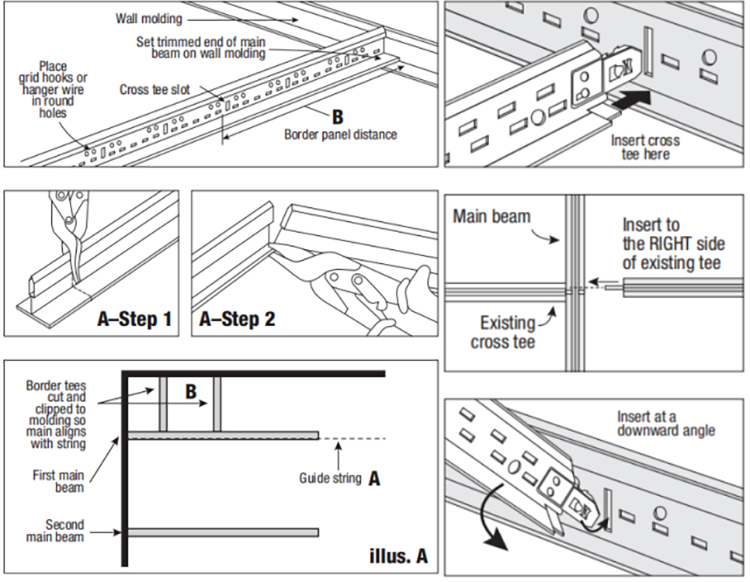

3. Installation


4. Ceiling T Grid Rolling Forming Machine Parameters for your reference

Weight:150kg

Steel coil ID:450-550(mm)

Steel coil OD:1500(mm)

Rollers:

14-18 Roller station

Material:Cr12mov

roller inner diameter:Φ40mm,

roller outer diameter:minΦ90

heat treatment hardness:HRC58-62

Transmission:the main drive uses chain drive, roll between the use of gear transmission

Middle Plate:thickness 25mm, grinding six-sided, high-precision boring from processing

Hydraulic system Motor Power:7.5kw

Cutting System:servo tracking system

Mold Material:SKD11


5.Ceiling T Grid Rolling Forming Machine

1) Easy for installation, in this special time our machine no need engineer, you can handle the installation yourself.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Full automatic production line and semi-automatic production line for customer choose.

4) The speed of the machine can reach 25 to 30 meter per minute.

5) Running in a high automation and intellectualism,no pollution

6) The molds are adjustable, so it can make adjustable length with adjustable punching type.

7) Punching per length, accurate mold processing, so we can make sure the punching 100% accurate.

6.More details of the Ceiling T Grid for your reference:

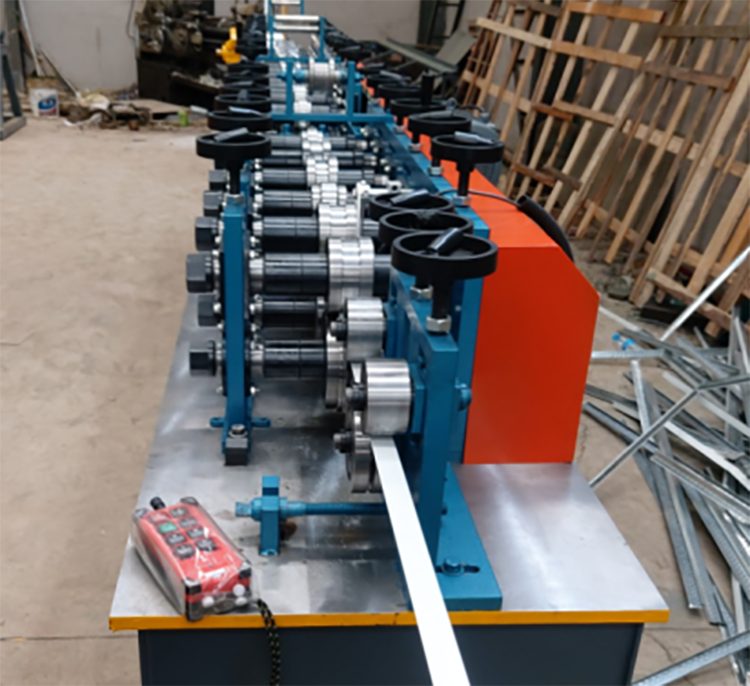

Main rolling forming machine, we design with pillar frame, accurate frame processing:

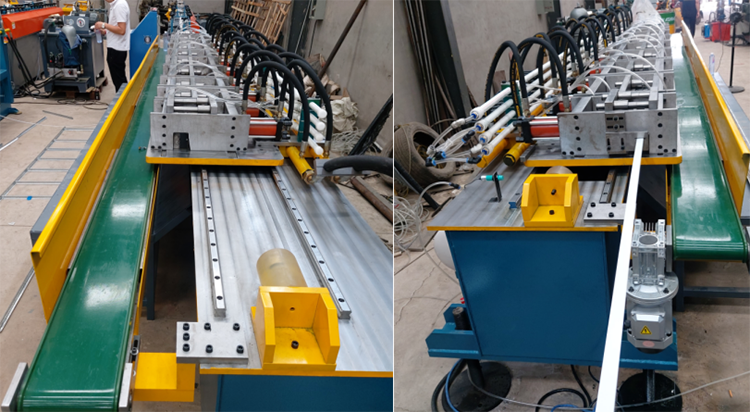

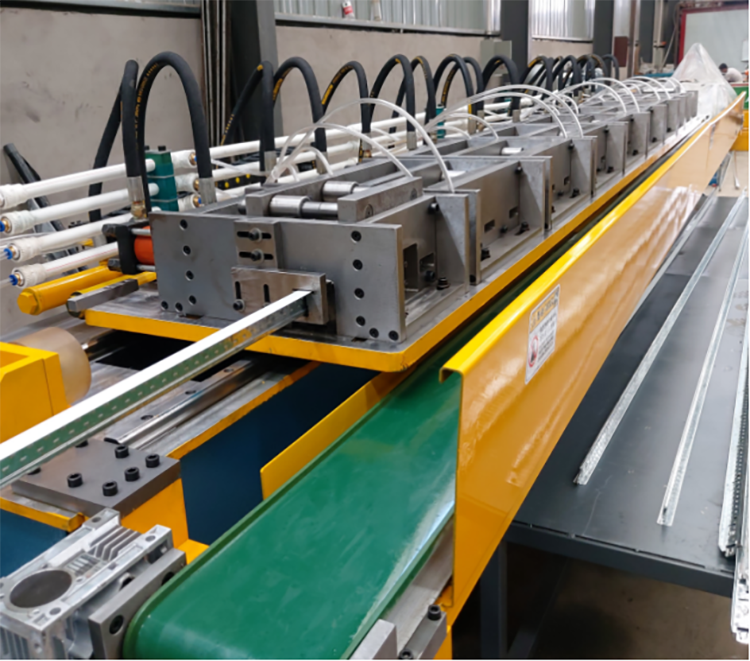

7. Whole mold punching part:

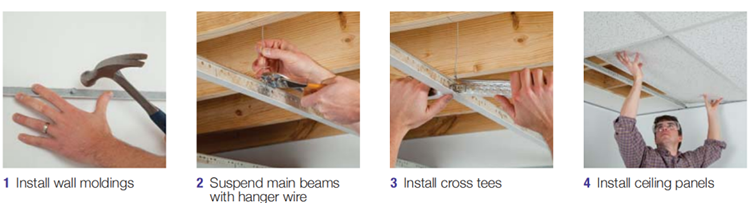

8. Here share some installation tips of T Grid.
