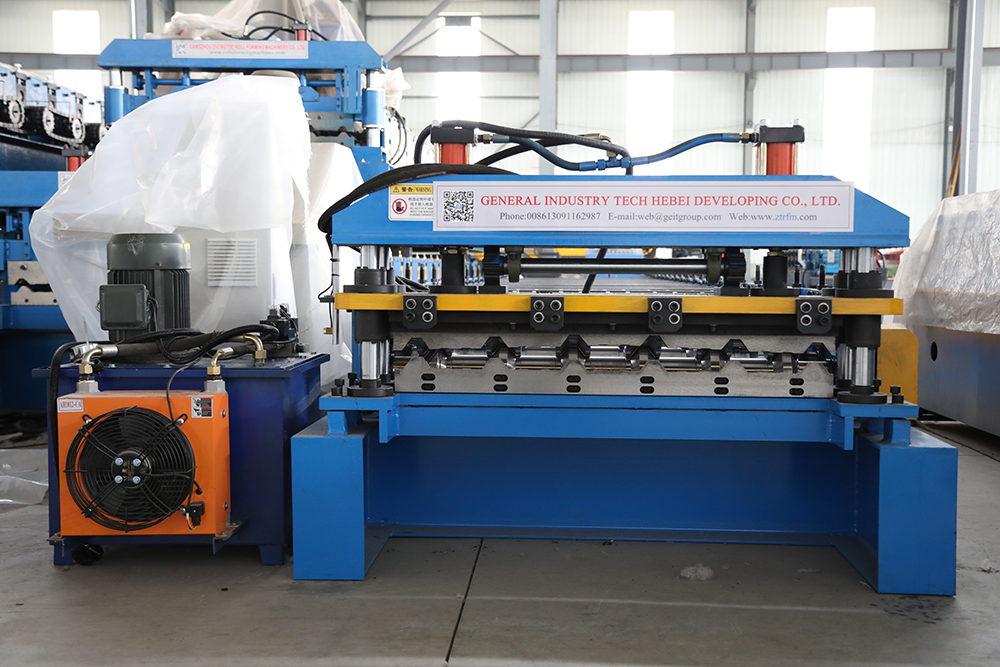

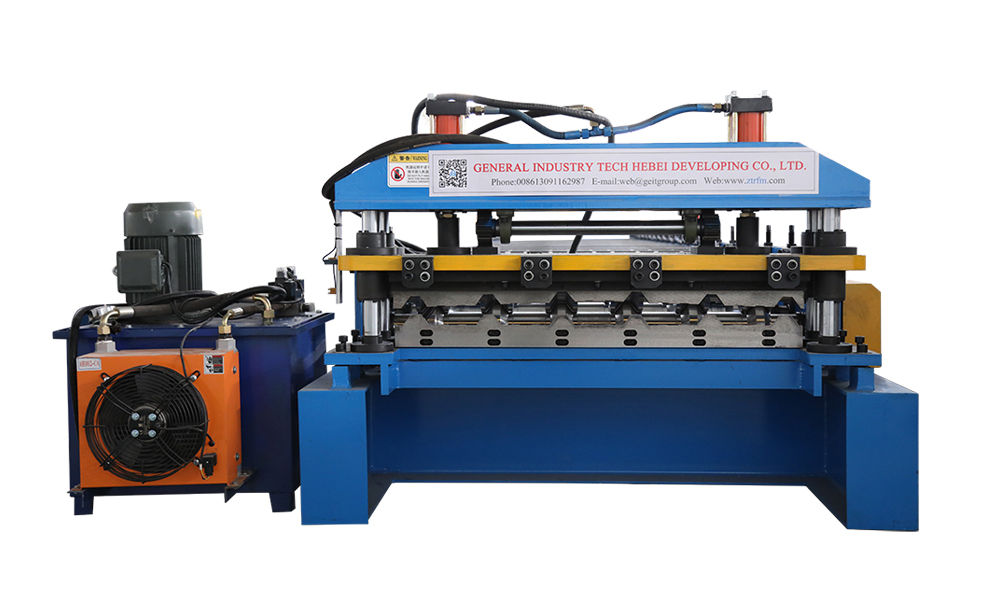

Trapezoid roofing sheet roll forming machine

•

IBR Roofing Sheet Roll Forming Machine

1.Trapezoid roofing sheet roll forming machine is a regular metal sheet roll former that produces metal roofing sheets or roof panels for both individual and industrial building.Trapezoidal roofing sheet used for roof decoration, external wall decoration,strengthening the roof of civil house and industrial workshop.Use on the roof can make the roof more beautiful, strengthen the rigid waterproof;The use on the external walls can make the buildings and factories more beautiful, and can prevent peeling of external walls.

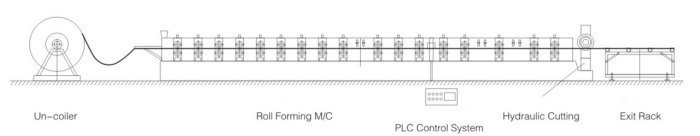

2.Process flow

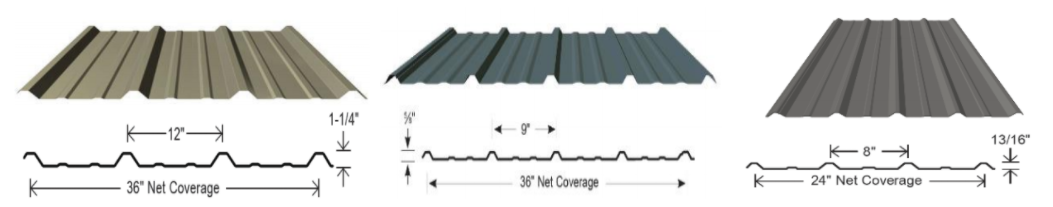

3.Profile drawing(we can design as customer's profile drawing):



4. The component of the IBR Roofing Sheet Roll Forming Machine

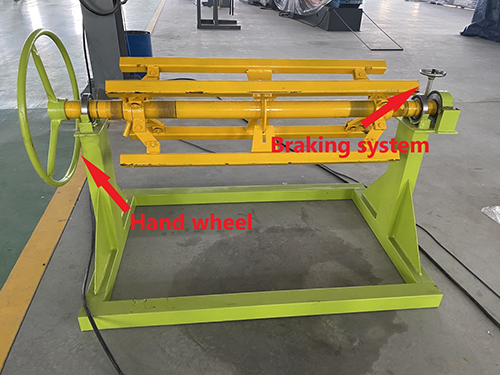

1..Manual decoiler (Hydraulic decoiler is also available)

Capacity: 5 tons /7 tons

Coil diameter: 450-550mm

Coil outer diameter: 1500mm

Coil width: 1200mm(as customers' profile drawing)

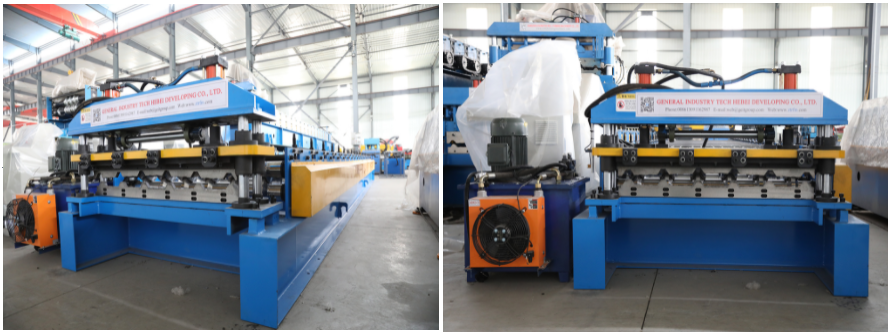

2.Main roll forming machine

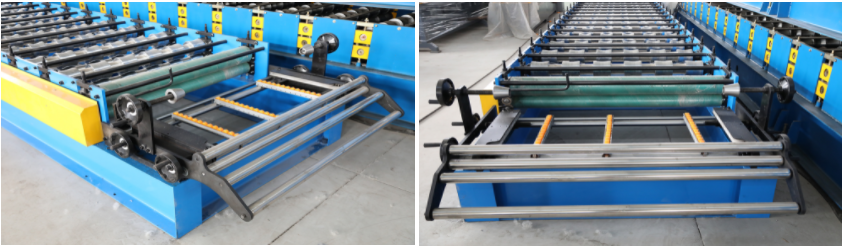

Feeding device: With two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers.

Machine body: 350H steel welded

Machine frame: Middle plate welded

Roller station: 18 stations

Roller material: 45# steel with quenched treatment and hard chroming

Shaft diameter: 80mm,solid

Shaft material: 45# steel with tempering treatment

Motor power: 5.5 kw

Speed: 0-20m/min

Transmission: By double chain

Voltage: 380V,50HZ,3PH





3.Cutting system

Blade material: Cr12,with quenched treatment

Motor power: 4 kW

Cutting tolerance: +/-1 mm

Cooling system: With fan cooling

Cutting type: Hydraulic cutting

Feature: Low noise and high performance

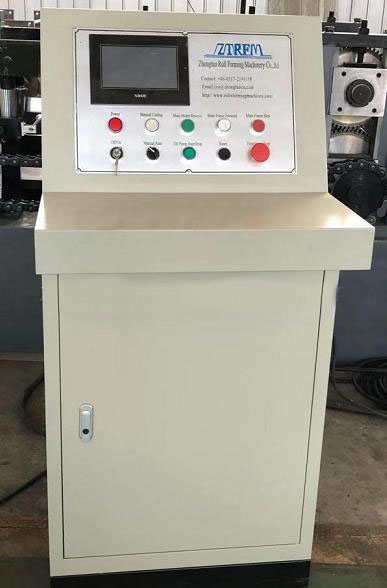

4.Control system

Control system: PLC

PLC brand: Delta from Taiwan

Frequency converter brand: Delta from Taiwan

Encoder: Omron

Function: Automatic control the length,quantity and batch



5.Prouduct receiving table

Length:3m

Width:1.25m

Material:square pipe welded
